FH-SPB45(54)1TCDL80

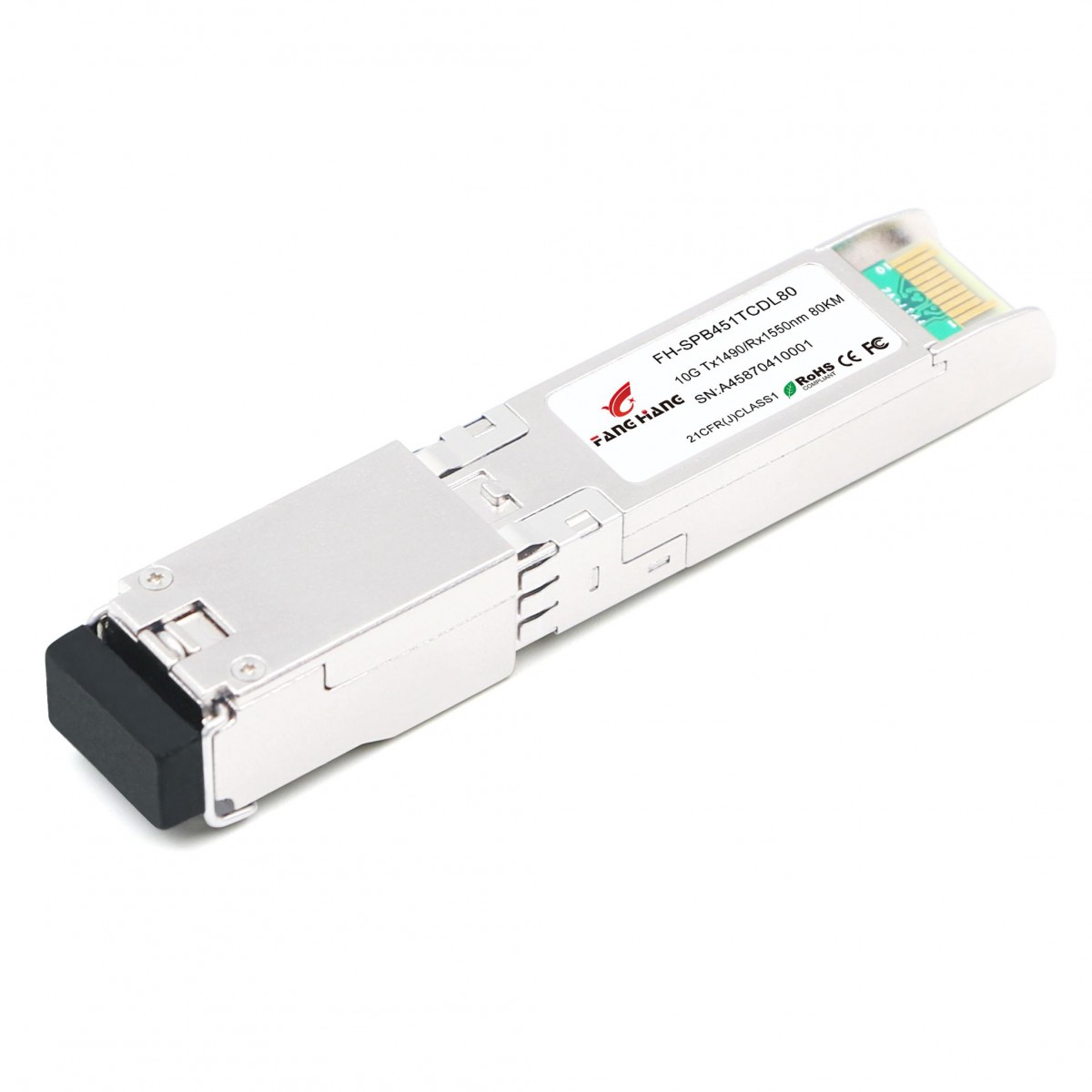

10G SFP+ WDM 1490/1550nm 80KM LC DDMI
1st
Product Features
Supports 9.95 to 11.3Gb/s bit rates
Simplex LC Connector
Hot pluggable SFP+ footprint
Cooled 1490nm EML transmitter, 1550nm APD receiver
Cooled 1550nm EML transmitter, 1490nm APD receiver
Applicable for 80km SMF connection
Low power consumption, < 1.5W
Digital Diagnostic Monitor Interface
Optical interface compliant to IEEE 802.3ae 10GBASE-ZR
Electrical interface compliant to SFF-8431
Operating case temperature:
Commerical:0 to 70 °C
Applications
10GBASE-BX Ethernet
Other optical link
Ordering Information
Part Number
Output Power
Rec. Sens
Data Rate
Wavelength
Distance
FH-SPB451TCDL80
0 ~ 5 db
-23 db
10.3125G
Tx1490/Rx1550nm
80km
FH-SPB541TCDL80
0 ~ 5 db
-23 db
10.3125G
Tx1550/Rx1490nm
80km
www.fanghangtech.com
FH-SPB45(54)1TCDL80
10G SFP+ WDM 1490/1550nm 80KM LC DDMI
2nd
General
FH-SPB45(54)1TCDL80 is hot pluggable 3.3V Small-Form-Factor transceiver module. It designed expressly for
high-speed communication applications that require rates up to 10.7Gbps,it designed to be compliant with SFF-8472 and
SFP+ MSA. The module data link up to 80km in 9/125um single mode fiber. The optical output can be disabled by a LVTTL
logic high-level input of Tx Disable. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS)
output is provided to indicate the loss of an input optical signal of receiver or the link status with partner.
Absolute Maximum Ratings
Parameter
Symbol
Min.
Max.
Unit
Note
Supply Voltage
Vcc
-0.5
4.0
V
Storage Temperature
-40
85
°C
Relative Humidity
85
%
Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the module
General Operating Characteristics
Parameter
Symbol
Min.
Typ
Max.
Unit
Note
Data Rate
Ethernet
9.95
10.3125
11.3
Gb/s
Supply Voltage
Vcc
3.13
3.3
3.47
V
Vcc
V
Supply Current
Icc5
450
mA
Icc3
mA
Operating Case Temp.
Tc
0
70
°C
www.fanghangtech.com
FH-SPB45(54)1TCDL80
10G SFP+ WDM 1490/1550nm 80KM LC DDMI
3rd
Electrical Input/Output Characteristics
1. Connected directly to TX data input pins. AC coupling from pins into laser driver IC.
2. Into 100Ω differential termination.
3. 20 – 80%. Measured with Module Compliance Test Board and OMA test pattern. Use of four 1’s and four 0’s sequence in the PRBS 9 is an
acceptable alternative.
4. LOS is an open collector output. Should be pulled up with 4.7kΩ – 10kΩ on the host board. Normal operation is logic 0; loss of signal is logic 1.
Parameter
Symbol
Min.
Typ
Max.
Unit
Note
Transmitter
Diff. input voltage swing
120
820
mVpp
1
Tx Disable input
H
VIH
2.0
Vcc+0.3
V
L
VIL
0
0.8
Tx Fault output
H
VOH
2.0
Vcc+0.3
V
2
L
VOL
0
0.8
Input Diff. Impedance
Zin
100
Ω
Receiver
Differential data output swing
Vout,pp
300
850
mVpp
2
Output rise time and fall time
Tr, Tf
28
Ps
3
LOS asserted
VLOS_F
VCC-0.8
Vcc
V
4
LOS de-asserted
VLOS_N
Vee
Vee+0.8
V
4
www.fanghangtech.com
FH-SPB45(54)1TCDL80
10G SFP+ WDM 1490/1550nm 80KM LC DDMI
4th
Optical Characteristics
Parameter
Symbol
Min.
Typ
Max.
Unit
Note
Transmitter
Operating Wavelength
λ
1470
1490
1510
nm
1530
1550
1565
Ave. output power (Enabled)
Po
0
5
dBm
2
Extinction Ratio
ER
8.2
dB
2
Rise/Fall time (20%~80%)
Tr/Tf
50
ps
3
Optical modulation amplitude
OMA
-4.8
dBm
Dispersion penalty
3
dB
Output Optical Eye
IEEE 802.3-2005 Compliant
Receiver
Operating Wavelength
λ
1530
1550
1565
nm
1470
1490
1510
Receiver Sensitivity
PSEN1
-23
dBm
2
Sensitivity over 80Km fiber
PSEN2
-20
dBm
2
Overload
PAVE
-7
dBm
LOS Assert
Pa
-35
dBm
LOS De-assert
Pd
-24
dBm
LOS Hysteresis
Pd-Pa
0.5
dB
Note 1) typical wavelegths 1490nm and 1550nm,1470nm~1610nm transmitter, minimum interval 20nm
Note 2) Measured at 10.3125b/s with PRBS 231 – 1 NRZ test pattern.
Note 3) 20%~80%
Note 4) Under the ER ==>--8.2, measured at 10.3125Gb/s with PRBS 231 - 1 NRZ test pattern for BER 1x10-12
www.fanghangtech.com
FH-SPB45(54)1TCDL80
10G SFP+ WDM 1490/1550nm 80KM LC DDMI
5th
Serial Interface For ID AND DDM
The SFP modules implement the 2-wire serial communication protocol as defined in the SFP MSA.
The serial ID information of the SFP modules and Digital Diagnostic Monitor parameters can be accessed through the
I2C interface at address A0h and A2h. The memory is mapped in Table 1. Detailed ID information(A0h) And the DDM
specification(A2h). For more details of the memory map and byte definitions, please refer to the SFF-8472 (Rev 9.3, Aug.
2002), “Digital Diagnostic Monitoring Interface for Optical Transceivers”.
The DDM parameters have been internally calibrated.
Table 1. Digital Diagnostic Memory Map (Specific Data Field Descriptions)
Functional Diagram
www.fanghangtech.com
FH-SPB45(54)1TCDL80
10G SFP+ WDM 1490/1550nm 80KM LC DDMI
6th
Pin Definitions And Functions
Pin
Symbol
Name/Description
1
VEET [1]
Transmitter Ground
2
Tx_FAULT [2]
Transmitter Fault
3
Tx_DIS [3]
Transmitter Disable. Laser output disabled on high or open
4
SDA [2]
2-wire Serial Interface Data Line
5
SCL [2]
2-wire Serial Interface Clock Line
6
MOD_ABS [4]
Module Absent. Grounded within the module
7
RS0
Rate Select 0
8
RX_LOS [2]
Loss of Signal indication. Logic 0 indicates normal operation
9
RS1 [5]
Rate Select 1
10
VEER [1]
Receiver Ground
11
VEER [1]
Receiver Ground
12
RD-
Receiver Inverted DATA out. AC Coupled
13
RD+
Receiver DATA out. AC Coupled
14
VEER [1]
Receiver Ground
15
VCCR
Receiver Power Supply
16
VCCT
Transmitter Power Supply
17
VEET [1]
Transmitter Ground
18
TD+
Transmitter DATA in. AC Coupled
19
TD-
Transmitter Inverted DATA in. AC Coupled
20
VEET [1]
Transmitter Ground
Note 1) Module circuit ground is isolated from module chassis ground within the module.
Note 2) This pin is an open collector/drain output pin and shall be pulled up with 4.7K-10Kohms to Host_Vcc on the host board.
Note 3) This pin shall be pulled up with 4.7K-10Kohms to VccT in the module.
Note 4) This pin is an open collector/drain output pin and shall be pulled up with 4.7K-10Kohms to Host_Vcc on the host board. In FC
designated as RX_LOS, inSONET designated as LOS, and in Ethernet designated at Signal Detect.
www.fanghangtech.com
FH-SPB45(54)1TCDL80
10G SFP+ WDM 1490/1550nm 80KM LC DDMI
7th
Typical Interface Circuit
Recommended power supply filter
Typical Interface Circuit
Note: Inductors with DC resistance of less than 1 should be used in order to maintain the required voltage at the SFP input pin with 3.3V
supply voltage. When the recommendedΩsupply filtering network is used, hot plugging of the SFP transceiver module will result in an
inrush current of no more than 30 mA greater than the steady state value
www.fanghangtech.com
FH-SPB45(54)1TCDL80
10G SFP+ WDM 1490/1550nm 80KM LC DDMI
8th
Package Dimensions
