FH-SPB23(32)1TCDL20

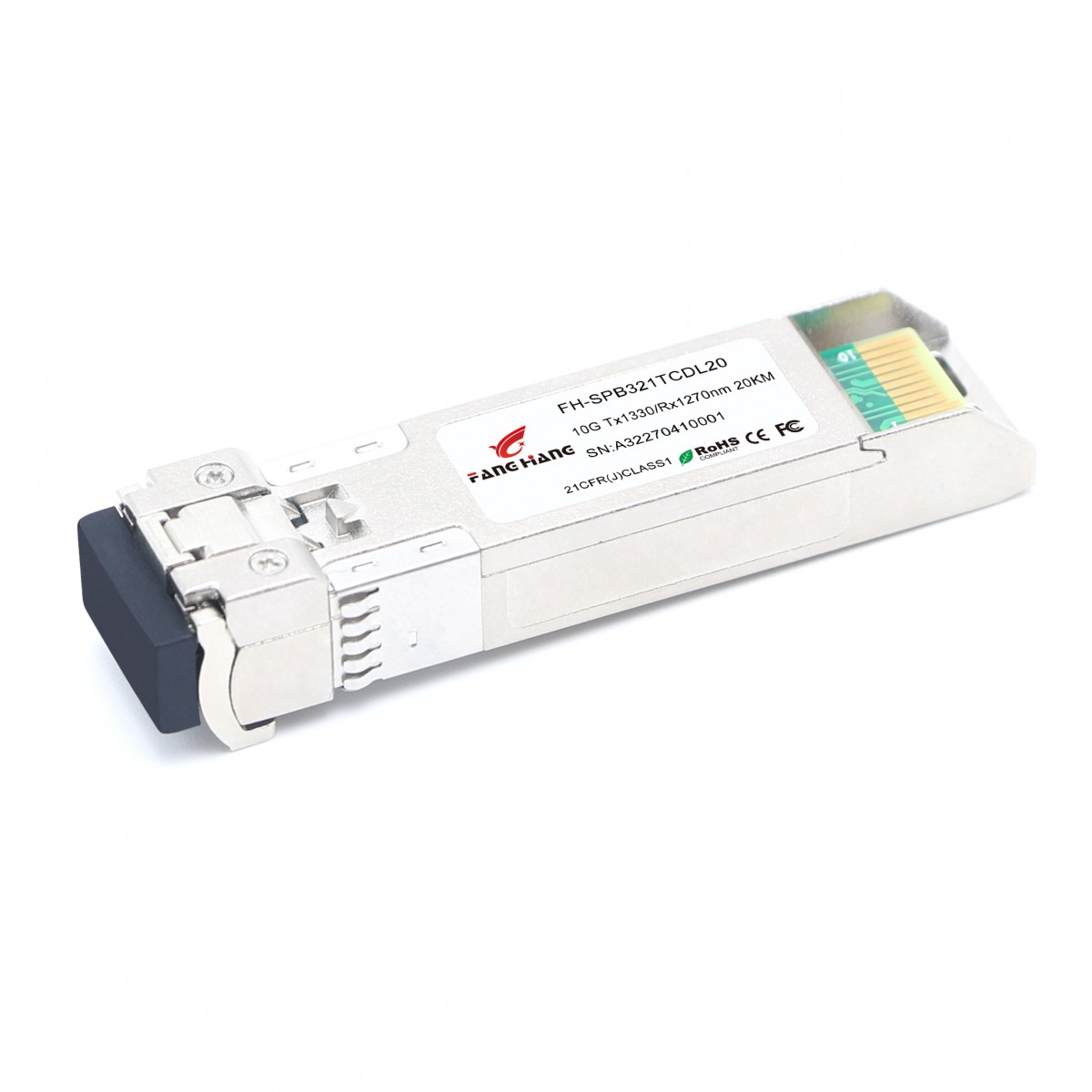

10G SFP+ WDM 1270/1330 20KM DDMI LC
1st
Product Features
Supports 9.95Gb/s to 10.3Gb/s data rates
Simplex LC Connector Bi-Directional SFP+ Optical Transceiver
Digital Diagnostic SFF-8472 Compliant
Hot pluggable
1270(1330) nm DFB Laser transmitter,1330(1270) nm receiver
Up to 20km on 9/125um SMF
Compliant with IEEE 802.3ae 10GBASE-LR and 10GBASE-LW
SFP+ MSA SFF-8431 Compliant
Operating case temperature: 0 to 70 °C
Applications
10GBASE-LR at 10.3125Gbps
10GBASE-LW at 9.953Gbps
Other optical links
Ordering Information
Part Number
Output Power
Rec. Sens
Data Rate
Wavelength
Distance
FH-SPB231TCDL20
-2 ~ 3 db
-14.4 db
10.3125G
TX1270/RX1330nm
20km
FH-SPB321TCDL20
-2 ~ 3 db
-14.4 db
10.3125G
TX1330/RX1270nm
20km
www.fanghangtech.com
FH-SPB23(32)1TCDL20
10G SFP+ WDM 1270/1330 20KM DDMI LC
2nd
General Descriptions
FH-SPB23(32)1TCDL20 Series single mode transceiver is small form factor pluggable module for duplex optical
data communications such as 10GBASE-LR/LW defined by IEEE 802.3ae. It is with the SFP+ 20-pin connector to allow
hot plug capability. Module is designed for single mode fiber and operates at a nominal wavelength of 1270(1330)nm
The transmitter section uses a multiple quantum well DFB, which is class 1 laser compliant according to International
Safety Standard IEC-60825.
The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical
header and a limiting post-amplifier IC.
Absolute Maximum Ratings
Parameter
Symbol
Min.
Max.
Unit
Note
Supply Voltage
Vcc
-0.5
4.0
V
Storage Temperature
-40
85
°C
Relative Humidity
85
%
Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the module
General Operating Characteristics
Parameter
Symbol
Min.
Typ
Max.
Unit
Note
Data Rate
Ethernet
10.3125
Gb/s
Fiber Channel
10.518
Supply Voltage
Vcc
3.13
3.3
3.47
V
Vcc
V
Supply Current
Icc5
mA
Icc3
400
mA
Operating Case Temp.
Tc
0
70
°C
www.fanghangtech.com
FH-SPB23(32)1TCDL20
10G SFP+ WDM 1270/1330 20KM DDMI LC
3rd
Electrical Input/Output Characteristics
Parameter
Symbol
Min.
Typ
Max.
Unit
Note
Transmitter
Diff. input voltage swing
120
820
mVpp
1
Tx Disable input
H
VIH
2.0
Vcc+0.3
V
L
VIL
0
0.8
Tx Fault output
H
VOH
2.0
Vcc+0.3
V
2
L
VOL
0
0.8
Input Diff. Impedance
Zin
100
Ω
Receiver
Diff. output voltage swing
340
650
800
mVpp
3
Rx LOS Output
H
VOH
2.0
Vcc+0.3
V
2
L
VOL
0
0.8
Note 1) TD+/- are internally AC coupled with 100Ω differential termination inside the module.
Note 2) Tx Fault and Rx LOS are open collector outputs, which should be pulled up with 4.7k to 10kΩ resistors on the host board. Pull up
voltage between 2.0V and Vcc+0.3V.
Note 3) RD+/- outputs are internally AC coupled, and should be terminated with 100Ω (differential) at the user SERDES.
www.fanghangtech.com
FH-SPB23(32)1TCDL20
10G SFP+ WDM 1270/1330 20KM DDMI LC
4th
Optical Characteristics
Parameter
Symbol
Min.
Typ
Max.
Unit
Note
Transmitter
Operating Wavelength
1260 (1320)
1270 (1330)
1280 (1340)
nm
Ave. output power (Enabled)
Po
-2
3
dBm
1
Extinction Ratio
ER
4
dB
1
RMS spectral width
Δλ
1
nm
Rise/Fall time (20%~80%)
Tr/Tf
50
ps
2
Optical modulation amplitude
OMA
-6.2
dBm
Dispersion penalty
1
dB
Output Optical Eye
Compliant with IEEE 0802.3ae
Receiver
Operating Wavelength
1320 (1260)
1330 (1270)
1340 (1280)
nm
Sensitivity
Psen
-14.4
dBm
3
Min. overload
Pimax
0.5
dBm
LOS Assert
Pa
-30
dBm
LOS De-assert
Pd
-16
dBm
LOS Hysteresis
Pd-Pa
0.5
4
dB
Note 1) Measured at 10.3125b/s with PRBS 231 – 1 NRZ test pattern.
Note 2) 20%~80%
Note 3) Under the ER worst case, measured at 10.3125 Gb/s with PRBS 231 - 1 NRZ test pattern for BER < 1x10-12
www.fanghangtech.com
FH-SPB23(32)1TCDL20
10G SFP+ WDM 1270/1330 20KM DDMI LC
5th
Functional Diagram
Pin Definitions And Functions
Pin
Symbol
Name/Description
1
VEET [1]
Transmitter Ground
2
Tx_FAULT [2]
Transmitter Fault
3
Tx_DIS [3]
Transmitter Disable. Laser output disabled on high or open
4
SDA [2]
2-wire Serial Interface Data Line
5
SCL [2]
2-wire Serial Interface Clock Line
6
MOD_ABS [4]
Module Absent. Grounded within the module
7
RS0 [5]
Rate Select 0
www.fanghangtech.com
FH-SPB23(32)1TCDL20
10G SFP+ WDM 1270/1330 20KM DDMI LC
6th
8
RX_LOS [2]
Loss of Signal indication. Logic 0 indicates normal operation
9
RS1 [5]
Rate Select 1
10
VEER [1]
Receiver Ground
11
VEER [1]
Receiver Ground
12
RD-
Receiver Inverted DATA out. AC Coupled
13
RD+
Receiver DATA out. AC Coupled
14
VEER [1]
Receiver Ground
15
VCCR
Receiver Power Supply
16
VCCT
Transmitter Power Supply
17
VEET [1]
Transmitter Ground
18
TD+
Transmitter DATA in. AC Coupled
19
TD-
Transmitter Inverted DATA in. AC Coupled
20
VEET [1]
Transmitter Ground
Notes: [1] Module circuit ground is isolated from module chassis ground within the module.
[2].should be pulled up with 4.7k – 10k ohms on host board to a voltage between 3.15Vand 3.6V.
[3]Tx_Disable is an input contact with a 4.7 kΩ to 10 kΩ pullup to VccT inside the module.
[4]Mod_ABS is connected to VeeT or VeeR in the SFP+ module. The host may pull this contact up to Vcc_Host with a resistor in the range 4.7
kΩ to10 kΩ.Mod_ABS is asserted “High” when the SFP+ module is physically absent from a host slot.
[5] RS0 and RS1 are module inputs and are pulled low to VeeT with > 30 kΩ resistors in the module.
Typical Interface Circuit
www.fanghangtech.com
FH-SPB23(32)1TCDL20
10G SFP+ WDM 1270/1330 20KM DDMI LC
7th
Recommended power supply filter
Note: Inductors with DC resistance of less than 1Ω should be used in order to maintain the required voltage at the SFP input
pin with 3.3V supply voltage. When the recommended supply filtering network is used, hot plugging of the SFP transceiver
module will result in an inrush current of no more than 30 mA greater than the steady state value
Package Dimensions
