Краткое техническое описание (Datasheet)
www.fanghangtech.com
FANG HANG TECH MILITED
深圳方航通信技术有限公司

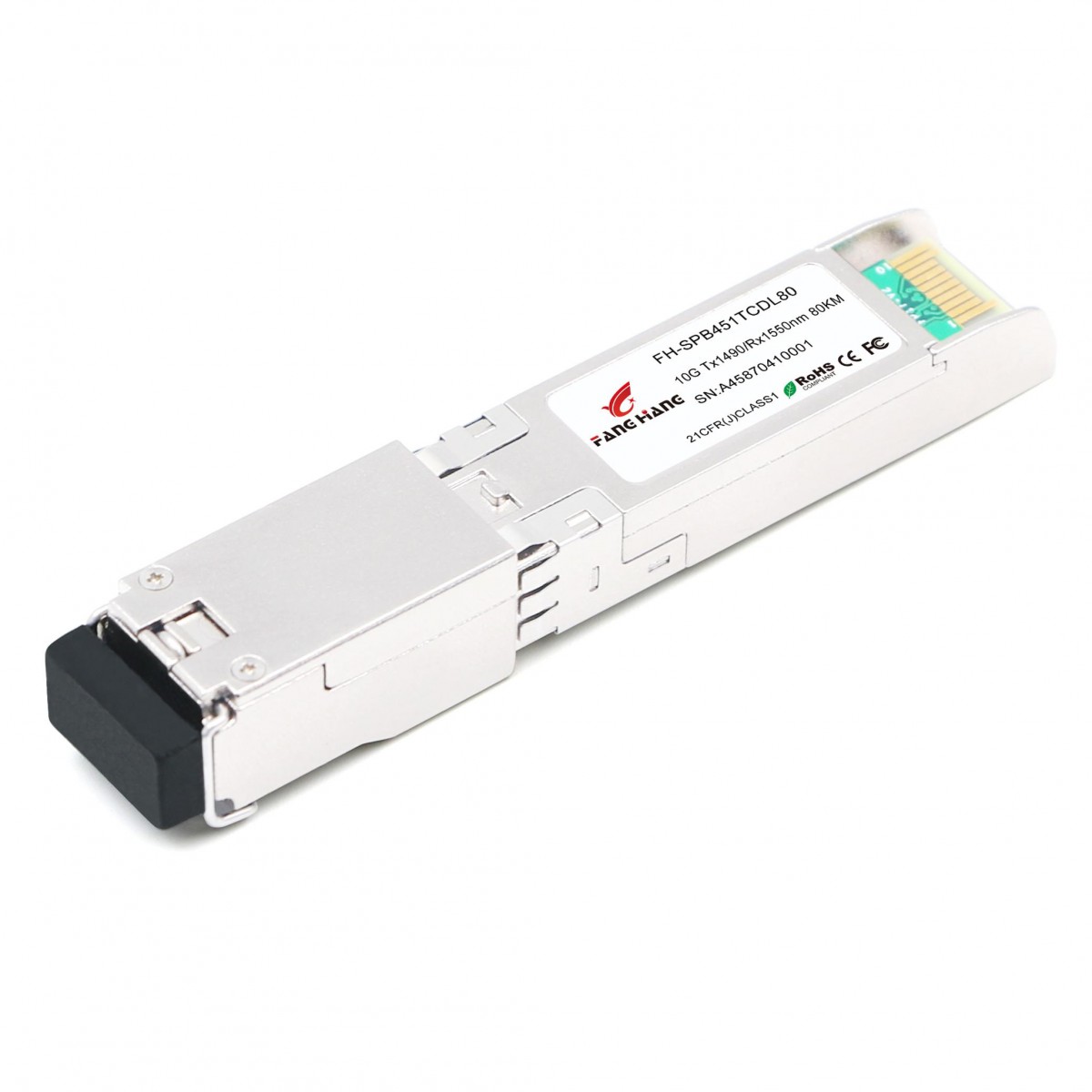

FH-SPB451TCDL100
10G SFP+ TX1490/RX1550nm 100KM LC DDMI
1st
Product Features
Support 1.25G~10Gb/s serial optical interface
SFP MSA package with single LC connector
1470nm~1610nm transmitter, minimum interval 20nm
APD receiver for high sensitivity
Very low EMI and excellent ESD protection
Digital Diagnostic Monitor Interface
Hot pluggable
Up to 100km distance
Compliant with SFP+ MSA
High transmission margin
+3.3V single power supply
Below <1.2W power consumption
Applications
10GBASE-BX at 10.3125 Gb/s
Other optical link
SFP+ MSA Compliant
SFF-8472 reversion 9.5 compliant
IEEE802.3-2005 compliant
Telcordia GR-468-CORE compliant
FCC 47 CFR Part 15,Class B compliant
FDA 21 CFR 1040.10 and 1040.11,class1 compliant
RoHS Compliant
www.fanghangtech.com
FANG HANG TECH MILITED
深圳方航通信技术有限公司
FH-SPB451TCDL100
10G SFP+ TX1490/RX1550nm 100KM LC DDMI
2nd
Ordering Information
General
FH-SPB451TCDL100 is hot pluggable 3.3V Small-Form-Factor transceiver module. It designed expressly for
high-speed communication applications that require rates up to 10.7Gbps,it designed to be compliant with SFF-8472 and
SFP+ MSA. The module data link up to 100km in 9/125um single mode fiber. The optical output can be disabled by a
LVTTL logic high-level input of Tx Disable. Tx Fault is provided to indicate that degradation of the laser. Loss of signal
(LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner.
Absolute Maximum Ratings
Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the module
Part Number
Output Power
Rec. Sens
Data Rate
Wavelength
Distance
FH-SPB451TCDL100
0 ~ +5db
-25db
10.3125G
TX1490/RX1550nm
100km
Parameter
Symbol
Min.
Max.
Unit
Note
Supply Voltage
Vcc
-0.5
4.0
V
Storage Temperature
-40
85
°C
Relative Humidity
85
%
www.fanghangtech.com
FANG HANG TECH MILITED
深圳方航通信技术有限公司
FH-SPB451TCDL100
10G SFP+ TX1490/RX1550nm 100KM LC DDMI
3rd
General Operating Characteristics
Parameter
Symbol
Min.
Typ
Max.
Unit
Note
Data Rate
Ethernet
10.3125
Gb/s
Supply Voltage
Vcc
3.13
3.3
3.47
V
Vcc
V
Supply Current
Icc5
mA
Icc3
550
mA
Operating Case Temp.
Tc
0
70
°C
Electrical Input/Output Characteristics
Parameter
Symbol
Min.
Typ
Max.
Unit
Note
Transmitter
Diff. input voltage swing
120
820
mVpp
1
Tx Disable input
H
VIH
2.0
Vcc+0.3
V
L
VIL
0
0.8
Tx Fault output
H
VOH
2.0
Vcc+0.3
V
2
L
VOL
0
0.8
Input Diff. Impedance
Zin
100
Ω
Receiver
Diff. output voltage swing
340
650
800
mVpp
3
Rx LOS Output
H
VOH
2.0
Vcc+0.3
V
2
L
VOL
0
0.8
www.fanghangtech.com
FANG HANG TECH MILITED
深圳方航通信技术有限公司
FH-SPB451TCDL100
10G SFP+ TX1490/RX1550nm 100KM LC DDMI
4th
Note 1) TD+/- are internally AC coupled with 100Ω differential termination inside the module.
Note 2) Tx Fault and Rx LOS are open collector outputs, which should be pulled up with 4.7k to 10kΩ resistors on the host board. Pull up
voltage between 2.0V and Vcc+0.3V.
Note 3) RD+/- outputs are internally AC coupled, and should be terminated with 100Ω (differential) at the user SERDES.
Optical Characteristics
Parameter
Symbol
Min.
Typ
Max.
Unit
Note
Transmitter
Operating Wavelength
1490
Ω
nm
1
Ave. output power (Enabled)
Po
0
+4
dBm
2
Extinction Ratio
ER
8.2
dB
2
Rise/Fall time (20%~80%)
Tr/Tf
50
ps
3
Optical modulation amplitude
OMA
-4.8
dBm
Dispersion penalty
3
dB
Output Optical Eye
IEEE 802.3-2005 Compliant
Note 1) typical wavelegths 1490nm and 1550nm,1470nm~1610nm transmitter, minimum interval 20nm
Note 2) Measured at 10.3125b/s with PRBS 231 – 1 NRZ test pattern.
Note 3) 20%~80%
Note 4) Under the ER ==>--8.2, measured at 10.3125Gb/s with PRBS 231 - 1 NRZ test pattern for BER 1x10-12
Receiver
Operating Wavelength
1550
nm
1
Sensitivity
Psen
-25
dBm
4
Sensitivity over 80Kkm fiber
Psen
-20
dBm
4
Min. overload
Pimax
-7
dBm
LOS Assert
Pa
-40
dBm
LOS De-assert
Pd
-25
dBm
LOS Hysteresis
Pd-Pa
0.5
4
dB
www.fanghangtech.com
FANG HANG TECH MILITED
深圳方航通信技术有限公司
FH-SPB451TCDL100
10G SFP+ TX1490/RX1550nm 100KM LC DDMI
5th
Serial Interface For ID AND DDM
The SFP modules implement the 2-wire serial communication protocol as defined in the SFP MSA.
The serial ID information of the SFP modules and Digital Diagnostic Monitor parameters can be accessed through the I2C interface
at address A0h and A2h. The memory is mapped in Table 1. Detailed ID information(A0h) And the DDM
specification(A2h). For more details of the memory map and byte definitions, please refer to the SFF-8472 (Rev 9.3, Aug. 2002),
“Digital Diagnostic Monitoring Interface for Optical Transceivers”.
The DDM parameters have been internally calibrated.
Table 1. Digital Diagnostic Memory Map (Specific Data Field Descriptions)
Functional Diagram
www.fanghangtech.com
FANG HANG TECH MILITED
深圳方航通信技术有限公司
FH-SPB451TCDL100
10G SFP+ TX1490/RX1550nm 100KM LC DDMI
7th
Notes:
Note 1) Module circuit ground is isolated from module chassis ground within the module.
Note 2) This pin is an open collector/drain output pin and shall be pulled up with 4.7K-10Kohms to Host_Vcc on the host board.
Note 3) This pin shall be pulled up with 4.7K-10Kohms to VccT in the module.
Note 4) This pin is an open collector/drain output pin and shall be pulled up with 4.7K-10Kohms to Host_Vcc on the host board. In FC designated as
RX_LOS, inSONET designated as LOS, and in Ethernet designated at Signal Detect.
Typical Interface Circuit
www.fanghangtech.com
FANG HANG TECH MILITED
深圳方航通信技术有限公司
FH-SPB451TCDL100
10G SFP+ TX1490/RX1550nm 100KM LC DDMI
8th
Recommended power supply filter
Typical Interface Circuit
Note: Inductors with DC resistance of less than 1 should be used in order to maintain the required voltage at the SFP input pin with 3.3V supply
voltage. When the recommendedΩsupply filtering network is used, hot plugging of the SFP transceiver module will result in an inrush current of no
more than 30 mA greater than the steady state value
www.fanghangtech.com
FANG HANG TECH MILITED
深圳方航通信技术有限公司
FH-SPB451TCDL100
10G SFP+ TX1490/RX1550nm 100KM LC DDMI
9th
Package Dimensions
