Краткое техническое описание (Datasheet)
www.fanghangtech.com 2015-08

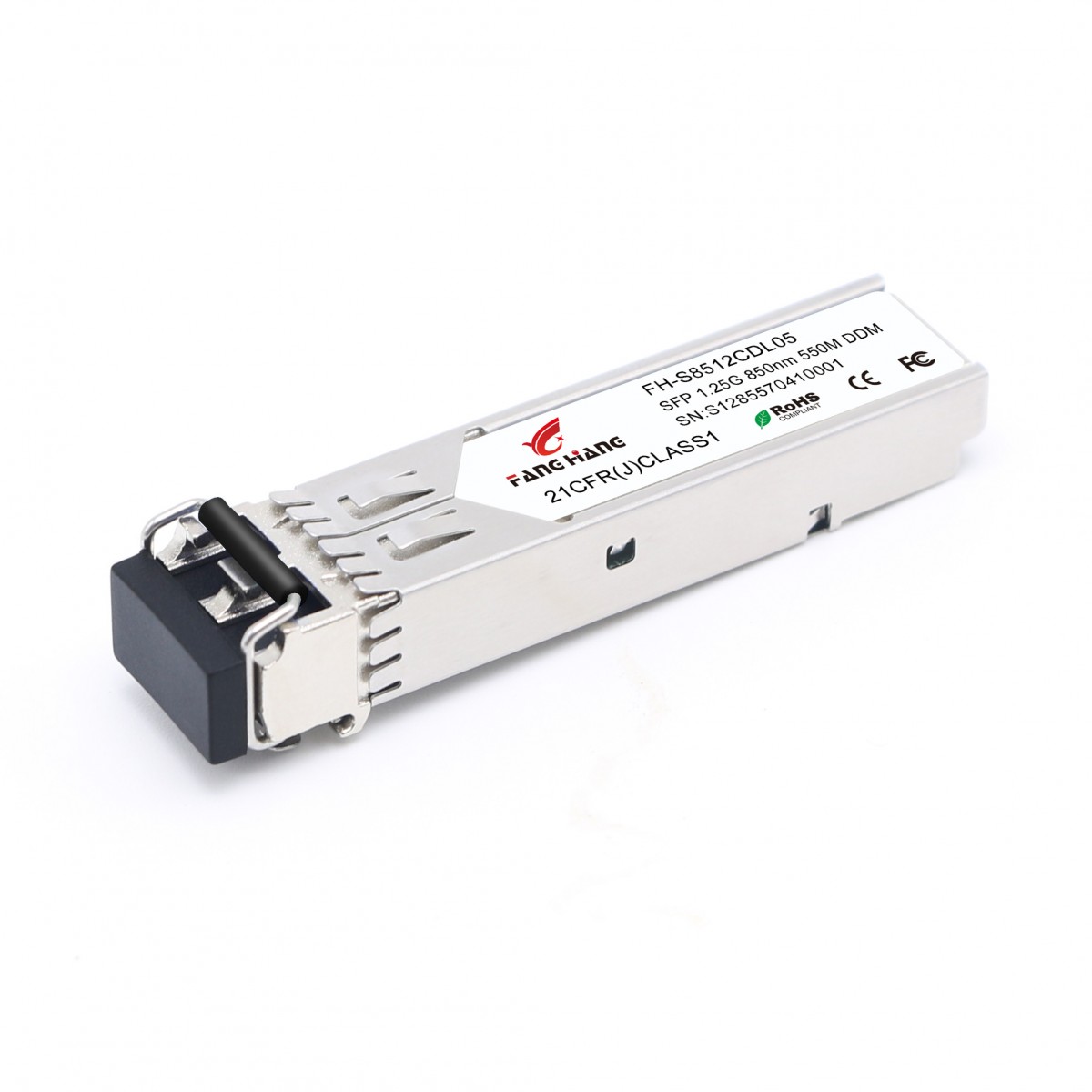

FH-S8512CDL05
1.25G SFP 850nm LC 550m DDMI
1st
Product Features
850nm VCSEL laser and PIN photodetector
Up to 1.25Gbps data rate operation
Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
Digital Diagnostic Monitor Interface
500m transmission with 50/125µm MMF
300m transmission with 62.5/125µm MMF
Very low EMI and excellent ESD protection
+3.3V single power supply
RoHS compliant
Case operating temperature :
Commercial: 0°C to +70°C / Extended: -10°C to +80°C / Industrial: -40°C to +85°C
Applications
Gigabit Ethernet
Fiber Channel
Switch to Switch interface
Switched back plane applications
Router/Server interface
Other optical transmission systems
Ordering Information
Part Number
Output Power
Rec. Sens
Data Rate
Wavelength
Distance
FH-S8512CDL05
-11 ~ 1db
-18db
1.25/1.0625Gbps
850nm
550M
www.fanghangtech.com 2015-08
FH-S8512CDL05
1.25G SFP 850nm LC 550m DDMI
2nd
General
FH-S8512CDL05 Transceivers are high performance, cost effective modules supporting data-rate of 1.25Gbps and
550m transmission distance with MMF.
The transceiver consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a
trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information,
please refer to SFP MSA.
Absolute Maximum Ratings
Parameter
Symbol
Min.
Max.
Unit
Note
Supply Voltage
Vcc
-0.5
3.6
V
Storage Temperature
-40
85
°C
Relative Humidity
5
85
%
Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the module
General Operating Characteristics
Parameter
Symbol
Min.
Typ.
Max.
Unit
Notes
Data Rate
Gigabit Ethernet
1.25
Gb/s
Fiber Channel
1.0625
Supply Voltage
Vcc
3.1
3.3
3.5
V
Supply Current
Icc
220
mA
Operating Case Temperature
Tc
0
70
℃
-10
80
-45
85
www.fanghangtech.com 2015-08
FH-S8512CDL05
1.25G SFP 850nm LC 550m DDMI
3rd
Electrical Input/Output Characteristics
Note 1) TD+/- are internally AC coupled with 100Ω differential termination inside the module.
2) Tx Fault and Rx LOS are open collector outputs, which should be pulled up with 4.7k to 10kΩ resistors on
the host board. Pull up voltage between 2.0V and Vcc+0.3V.
3) RD+/- outputs are internally AC coupled, and should be terminated with 100Ω (differential) at the user SERDES.
Parameter
Symbol
Min.
Typical
Max.
Unit
Notes
Transmitter
Diff. Input Voltage Swing
300
1600
mVpp
1
Tx Disable Input
H
VIH
2.0
Vcc+0.3
V
L
VIL
0
0.8
Tx Fault Output
H
VOH
2.0
Vcc+0.3
V
2
L
VOL
0
0.8
Input Diff. Impedance
Zin
100
Ω
Receiver
Diff. Output Voltage Swing
400
1000
mVpp
3
Rx LOS Output
H
VOH
2.0
Vcc+0.3
V
2
L
VOL
0
0.8
www.fanghangtech.com 2015-08
FH-S8512CDL05
1.25G SFP 850nm LC 550m DDMI
4th
Optical Characteristics
Note : 1) Measured at 1250 Mb/s with PRBS 27– 1 NRZ test pattern.
2) Unfiltered, measured with a PRBS 27-1 test pattern @1.25Gbps
3) Measured at 1250 Mb/s with PRBS 27– 1 NRZ test pattern for BER < 1x10-12
Diagnostics
Parameter
Symbol
Min.
Typical
Max.
Unit
Notes
Transmitter
Ave. Output Power (Enable)
Po
-11
-1
dBm
1
Extinction Ratio
ER
9
dB
1
Rise/Fall Time (20%-80%)
Tr-Tf
0.26
ns
2
Wavelength Range
840
850
860
nm
Spectral Width (RMS)
0.65
nm
Output Optical Eye
Compliant with IEEE802.3 z (class 1 aser safety)
Receiver
Operating Wavelength
770
860
nm
Sensitivity
Pimin
-18
dBm
3
Min. Overload
Pimax
0
dBm
3
LOS Assert
Pa
-35
dBm
LOS De-assert
Pd
-19
dBm
LOS Hysteresis
Pd-Pa
0.5
6
dB
Parameter
Range
Unit
Accuracy
Calibration
Temperature
0 to +70 -40 to +85
°C
±3°C
Internal/ External
Voltage
3.0 to 3.6
V
±3%
Internal/ External
Bias Current
2 to 15
mA
±10%
Internal/ External
TX Power
-13 to -1
dBm
±3dB
Internal/ External
RX Power
-21 to 0
dBm
±3dB
Internal/ External
www.fanghangtech.com 2015-08
FH-S8512CDL05
1.25G SFP 850nm LC 550m DDMI
5th
Pin Definitions And Functions
PIN
Name
Function
Notes
1
VeeT
Tx ground
2
Tx Fault
Tx fault indication, Open Collector Output, active “H”
Note 1
3
Tx Disable
LVTTL Input, internal pull-up, Tx disabled on “H”
Note 2
4
MOD-DEF2
2 wire serial interface data input/output (SDA)
Note 3
5
MOD-DEF1
2 wire serial interface clock input (SCL)
Note 3
6
MOD-DEF0
Model present indication
Note 3
7
Rate select
No connection
8
LOS
Rx loss of signal, Open Collector Output, active “H”
Note 4
9
VeeR
Rx ground
10
VeeR
Rx ground
11
VeeR
Rx ground
12
RD-
Inverse received data out
Note 5
13
RD+
Received data out
Note 5
14
VeeR
Rx ground
15
VccR
Rx power supply
16
VccT
Tx power supply
17
VeeT
Tx ground
18
TD+
Transmit data in
Note 6
19
TD-
Inverse transmit data in
Note 6
20
VeeT
Tx ground
www.fanghangtech.com 2015-08
FH-S8512CDL05
1.25G SFP 850nm LC 550m DDMI
6th
Notes: 1) When high, this output indicates a laser fault of some kind. Low indicates normal operation. And should be pulled up with a 4.7
– 10KΩ resistor on the host board.
Note 2) TX disable is an input that is used to shut down the transmitter optical output. It is pulled up within the module with a 4.7 – 10KΩ
resistor. Its states are:
Low (0 – 0.8V): Transmitter on (>0.8, < 2.0V): Undefined
High (2.0V~Vcc+0.3V): Transmitter Disabled Open: Transmitter Disabled
Note 3) Mod-Def 0,1,2. These are the module definition pins. They should be pulled up with a 4.7K – 10KΩ resistor on the host board.
The pull-up voltage shall be between 2.0V~Vcc+0.3V.
Mod-Def 0 has been grounded by the module to indicate that the module is present
Mod-Def 1 is the clock line of two wire serial interface for serial ID
Mod-Def 2 is the data line of two wire serial interface for serial ID
Note 4) When high, this output indicates loss of signal (LOS). Low indicates normal operation.
Note 5) RD+/-: These are the differential receiver outputs. They are AC coupled 100Ω differential lines which should be terminated with
100Ω (differential) at the user SERDES. The AC coupling is done inside the module and is thus not required on the host board.
Note 6) TD+/-: These are the differential transmitter inputs. They are AC-coupled, differential lines with 100Ω differential termination
inside the module. The AC coupling is done inside the module and is thus not required on the host board.
Functional Diagram
