Краткое техническое описание (Datasheet)
www.fanghangtech.com 2015-08

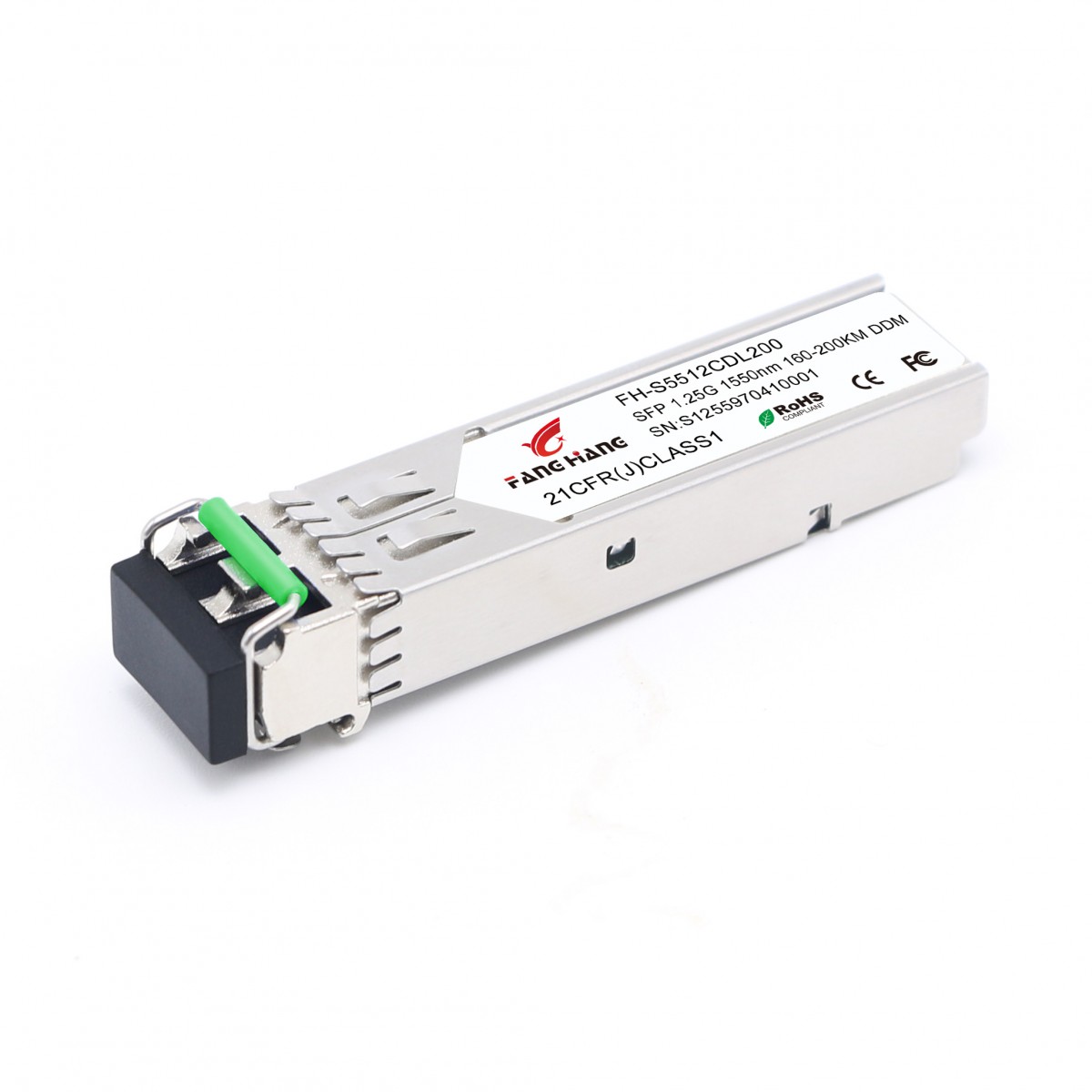

FH-S5512CDL160
1.25G SFP 1550nm LC 160km DDMI
1st
Product Features
Support IEEE802.3 and Fiber Channel Applicable
Support 1.25G GbE and 1.0625G for Fiber-Channel
Support to 160km transmission on G.652 SMF
1550nm transmitter with DFB laser
1550nm receiver with APD-TIA
2-wire interface for integrated digital diagnostic monitoring
SFP package with duplex LC/UPC receptacle optical interface
Single +3.3V power supply
RoHS6 Compliant
Operating case temperature Commercial: 0°C to +70°C Extended: -10°C to +80°C Industrial: -40°C to +85°C
Applications
Gigabit Ethernet
Fiber Channel
Switch to Switch interface
Switched backplane applications
Router/Server interface
Other optical transmission systems
Ordering Information
Part Number
Output Power
Rec. Sens
Data Rate
Wavelength
Distance
FH-S5512CDL160
FH-S5512EDL160
FH-S5512IDL160
+3~ +7db
-34db
1.25/1.0625Gbps
1550nm
160KM
www.fanghangtech.com 2015-08
FH-S5512CDL160
1.25G SFP 1550nm LC 160km DDMI
2nd
General
FH-S5512CDL160 SFP transceivers are high performance, cost effective modules supporting dual data-rate of
1.25Gbps/1.0625Gbps and 80km transmission distance with SMF.
The transceiver consists of three sections: a DFB laser transmitter, a APD photodiode integrated with a
trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
Transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please
refer to SFP MSA
Absolute Maximum Ratings
Parameter
Symbol
Min.
Max.
Unit
Note
Supply Voltage
Vcc
-0.5
3.6
V
Storage Temperature
-40
85
°C
Relative Humidity
5
85
%
Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the module
General Operating Characteristics
Parameter
Symbol
Min.
Typ.
Max.
Unit
Notes
Data Rate
Gigabit Ethernet
1.25
Gb/s
Fiber Channel
1.0625
Supply Voltage
Vcc
3.1
3.3
3.5
V
Supply Current
Icc
300
mA
Operating Case Temperature
Tc
0
70
℃
-10
80
-45
85
www.fanghangtech.com 2015-08
FH-S5512CDL160
1.25G SFP 1550nm LC 160km DDMI
3rd
Electrical Input/Output Characteristics
Note: 1) TD+/- are internally AC coupled with 100Ω differential termination inside the module.
2) Tx Fault and Rx LOS are open collector outputs, which should be pulled up with 4.7k to 10kΩ resistors on
the host board. Pull up voltage between 2.0V and Vcc+0.3V.
3) RD+/- outputs are internally AC coupled, and should be terminated with 100Ω (differential) at the user SERDES.
Parameter
Symbol
Min.
Typical
Max.
Unit
Notes
Transmitter
Diff. Input Voltage Swing
200
2000
mVpp
1
Tx Disable Input
H
VIH
2.0
Vcc+0.3
V
L
VIL
0
0.8
Tx Fault Output
H
VOH
2.4
Vcc+0.3
V
2
L
VOL
0
0.4
Input Diff. Impedance
Zin
90
100
110
Ω
Receiver
Diff. Output Voltage Swing
400
1600
mVpp
3
Rx LOS Output
H
VOH
2.0
Vcc+0.3
V
2
L
VOL
0
0.8
www.fanghangtech.com 2015-08
FH-S5512CDL160
1.25G SFP 1550nm LC 160km DDMI
4th
Optical Characteristics
Note 1) Measured at 1250 Mb/s with PRBS 223 – 1 NRZ test pattern.
2) Unfiltered, measured with a PRBS 223-1 test pattern @1.25Gbps
3) Measured at 1250 Mb/s with PRBS 223 – 1 NRZ test pattern for BER < 1x10-12
Parameter
Symbol
Min.
Typical
Max.
Unit
Notes
Transmitter
Ave. Output Power (Enable)
Po
+3
+7
dBm
1
Extinction Ratio
ER
9
dB
1
Rise/Fall Time (20%-80%)
Tr-Tf
0.26
ns
2
Wavelength Range
1500
1550
1580
nm
Spectral Width (RMS)
1
nm
Output Optical Eye
Compliant with IEEE802.3 z (class 1 aser safety)
Receiver
Operating Wavelength
1260
1550
1610
nm
Sensitivity
Pimin
-34
dBm
3
Min. Overload
Pimax
-3
dBm
3
LOS Assert
Pa
-40
dBm
LOS De-assert
Pd
-35
dBm
LOS Hysteresis
Pd-Pa
0.5
6
dB
www.fanghangtech.com 2015-08
FH-S5512CDL160
1.25G SFP 1550nm LC 160km DDMI
5th
Pin Definitions And Functions
Pin No.
Symbol
Level / Logic
Description
1
VeeT
Module Transmitter Ground
2
Tx_Fault
LVTTL-O
Module Transmitter Fault Indication
3
Tx_DIS
LVTTL-I
Transmitter Disable; Active High Disable Transmitter Output
4
SDA
LVTTL-I
2-Wire Serial Interface Data Line
5
SCL
LVTTL-I/O
2-Wire Serial Interface Clock
6
MOD_ABS
LVTTL-O
Module Absent, connected to ground in the module
7
RS0
Not Connected
8
RX_LOS
LVTTL-O
Loss of Receiver Signal Indication
9
RS1
Not Connected
10
VeeR
Module Receiver Ground
11
VeeR
Module Receiver Ground
12
RD-
CML-O
Receiver Inverted Data Output
13
RD+
CML-O
Receiver Non-Inverted Data Output
14
VeeR
Module Receiver Ground
15
VccR
Module Receiver 3.3V Supply
16
VccT
Module Transmitter 3.3V Supply
17
VeeT
Module Transmitter Ground
18
TD+
CML-I
Transmitter Non-Inverted Data Input
19
TD-
CML-I
Transmitter Inverted Data Input
20
VeeT
Module Transmitter Ground
