Краткое техническое описание (Datasheet)
www.fanghangtech.com
FANG HANG TECH LIMITED

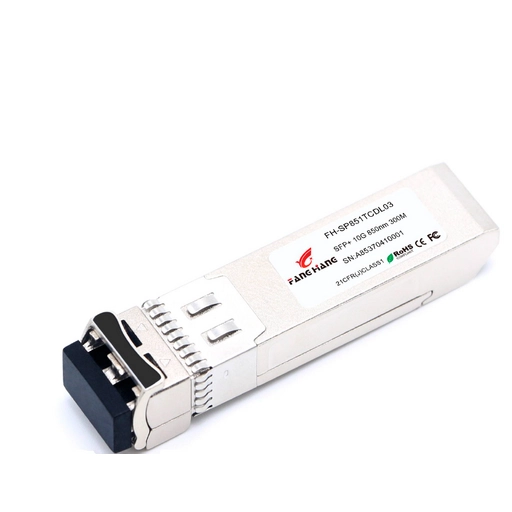

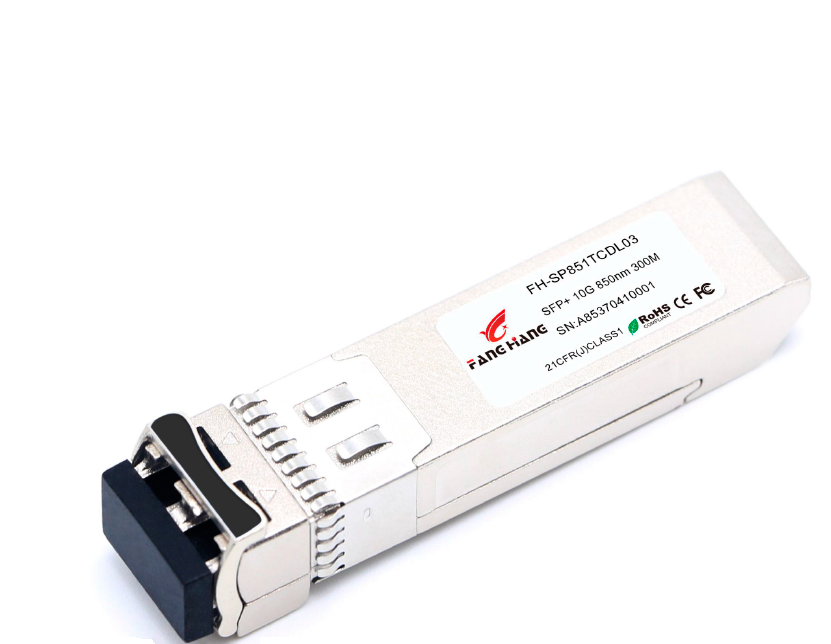

FH-SP851TCDL03
10G SFP+ 850nm 300m DDMI LC
1st
Product Features
Hot pluggable
Optical interface compliant to IEEE 802.3ae
Up to 300m on 50/125um MMF(2000MHZ.KM)
850nm VCSEL transmitter, PIN photo-detector
SFP MSA package with duplex LC connector
Low power consumption
Very low EMI and excellent ESD protection
+3.3V single power supply
Cost effective SFP+ solution, enables higher port densities and greater bandwidth
Operating case temperature: 0 to 70 °C
Applications
10GBASE-SR/SW 10G Ethernet
10G Fiber Channel
Other optical links
Ordering Information
Part Number
Output Power
Rec. Sens
Data Rate
Wavelength
Distance
FH-SP851TCDL03
-7.2 ~ -1db
-11.1db
1.25G~11.1G
850nm
300M
www.fanghangtech.com
FANG HANG TECH LIMITED
FH-SP851TCDL03
10G SFP+ 850nm 300m DDMI LC
2nd
General
FH-SP851TCDL03 Optical transceivers are designed for 10Gb/s serial optical interfaces for data communications
with multimode fiber (MMF). The transceiver can support 1.25Gb/s to 11.1Gb/s.
The transceiver designs are optimized for high performance and cost effective to supply customers the best solutions for
data-com and storage applications.
Absolute Maximum Ratings
Parameter
Symbol
Min.
Max.
Unit
Note
Supply Voltage
Vcc
-0.5
4.0
V
Storage Temperature
-40
85
°C
Relative Humidity
85
%
Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the module
General Operating Characteristics
Parameter
Symbol
Min.
Typ
Max.
Unit
Note
Data Rate
Ethernet
10.3125
Gb/s
Fiber Channel
10.518
Supply Voltage
Vcc
3.13
3.3
3.47
V
Vcc
V
Supply Current
Icc5
mA
Icc3
300
mA
Operating Case Temp.
Tc
0
70
°C
www.fanghangtech.com
FANG HANG TECH LIMITED
FH-SP851TCDL03
10G SFP+ 850nm 300m DDMI LC
3rd
Electrical Input/Output Characteristics
Parameter
Symbol
Min.
Typ
Max.
Unit
Note
Transmitter
Diff. input voltage swing
120
820
mVpp
1
Tx Disable input
H
VIH
2.0
Vcc+0.3
V
L
VIL
0
0.8
Tx Fault output
H
VOH
2.0
Vcc+0.3
V
2
L
VOL
0
0.8
Input Diff. Impedance
Zin
100
Ω
Receiver
Diff. output voltage swing
340
650
800
mVpp
3
Rx LOS Output
H
VOH
2.0
Vcc+0.3
V
2
L
VOL
0
0.8
Note 1) TD+/- are internally AC coupled with 100Ω differential termination inside the module.
Note 2) Tx Fault and Rx LOS are open collector outputs, which should be pulled up with 4.7k to 10kΩ resistors on the host board. Pull up
voltage between 2.0V and Vcc+0.3V.
Note 3) RD+/- outputs are internally AC coupled, and should be terminated with 100Ω (differential) at the user SERDES.
www.fanghangtech.com
FANG HANG TECH LIMITED
FH-SP851TCDL03
10G SFP+ 850nm 300m DDMI LC
4th
Optical Characteristics
Parameter
Symbol
Min.
Typ
Max.
Unit
Note
Transmitter
Operating Wavelength
850
nm
Ave. output power (Enabled)
Po
-6
-1
dBm
1
Extinction Ratio
ER
3.5
dB
1
RMS spectral width
Δλ
0.45
nm
Rise/Fall time (20%~80%)
Tr/Tf
45
ps
2
Optical modulation amplitude
OMA
-2.8
dBm
Dispersion penalty
3.9
dB
Output Optical Eye
IEEE 802.3-2005 Compliant
Receiver
Operating Wavelength
840
860
nm
Sensitivity
Psen
-11
dBm
3
Min. overload
Pimax
-1
dBm
LOS Assert
Pa
-24
dBm
LOS De-assert
Pd
-12
dBm
LOS Hysteresis
Pd-Pa
0.5
4
dB
Note 1) Measured at 10.3125b/s with PRBS 231 – 1 NRZ test pattern.
Note 2) 20%~80%
Note 3) Under the ER worst case, measured at 10.3125 Gb/s with PRBS 231 - 1 NRZ test pattern for BER < 1x10-12
www.fanghangtech.com
FANG HANG TECH LIMITED
FH-SP851TCDL03
10G SFP+ 850nm 300m DDMI LC
5th
Pin Definitions And Functions
Pin
Symbol
Name/Description
1
VEET [1]
Transmitter Ground
2
Tx_FAULT [2]
Transmitter Fault
3
Tx_DIS [3]
Transmitter Disable. Laser output disabled on high or open
4
SDA [2]
2-wire Serial Interface Data Line
5
SCL [2]
2-wire Serial Interface Clock Line
6
MOD_ABS [4]
Module Absent. Grounded within the module
7
RS0 [5]
Rate Select 0
8
RX_LOS [2]
Loss of Signal indication. Logic 0 indicates normal operation
9
RS1 [5]
Rate Select 1
10
VEER [1]
Receiver Ground
11
VEER [1]
Receiver Ground
12
RD-
Receiver Inverted DATA out. AC Coupled
www.fanghangtech.com
FANG HANG TECH LIMITED
FH-SP851TCDL03
10G SFP+ 850nm 300m DDMI LC
6th
13
RD+
Receiver DATA out. AC Coupled
14
VEER [1]
Receiver Ground
15
VCCR
Receiver Power Supply
16
VCCT
Transmitter Power Supply
17
VEET [1]
Transmitter Ground
18
TD+
Transmitter DATA in. AC Coupled
19
TD-
Transmitter Inverted DATA in. AC Coupled
20
VEET [1]
Transmitter Ground
Notes: 1. Module circuit ground is isolated from module chassis ground within the module.
2. Open collector; should be pulled up with 4.7k – 10k ohms on host board to a voltage between 3.15Vand 3.6V.
3. Reference Clock input is not required.
Functional Diagram
www.fanghangtech.com
FANG HANG TECH LIMITED
FH-SP851TCDL03
10G SFP+ 850nm 300m DDMI LC
7th
Package Dimensions
For More Information
FANG HANG TECH LIMITED
Room 908,Jingyuan Building，28 Bulong Rd，Longgang District, Shenzhen China
Tel: +86-755-89584520
Fax: +86-755-89584520
sales@fanghangtech.com
www.fanghangtech.com
