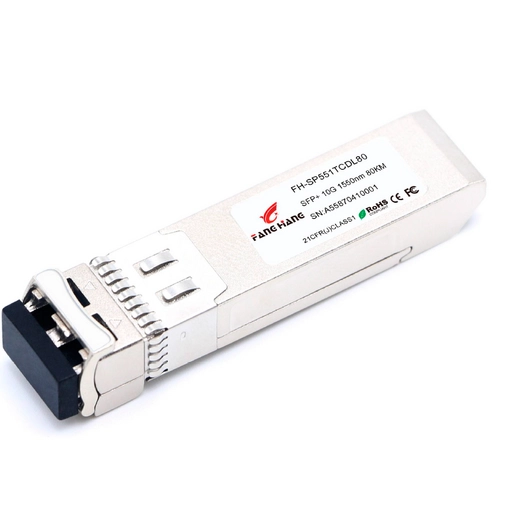

Empty FH-SP551TCDL80
Краткое техническое описание (Datasheet)
www.fanghangtech.com
FANG HANG TECH LIMITED

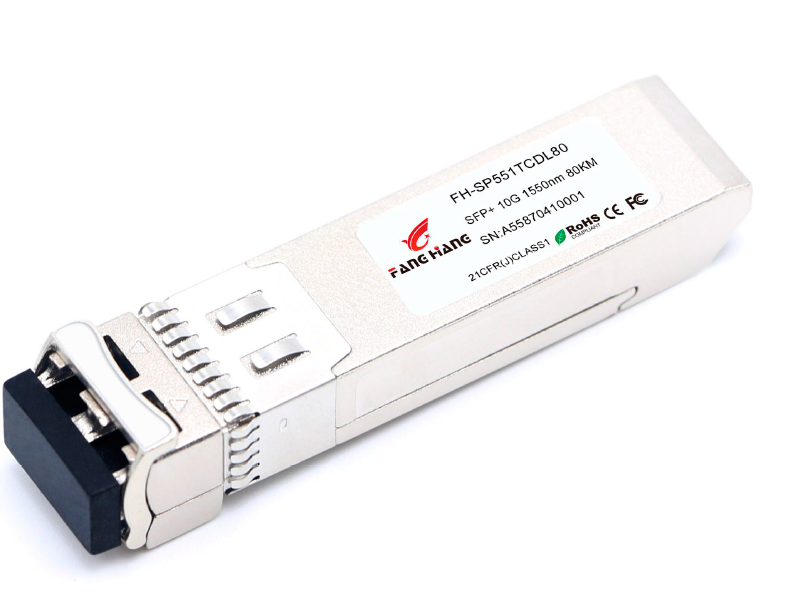

FH-SP551TCDL80
10G SFP+ 1550nm 80km LC DDMI
1st
Product Features
Compliant with SFF-8431,SFF-8432 and IEE802.3ae
Cooled EML transmitter and APD receiver
Digital Diagnostic Monitor Interface
Hot pluggable
Dual CDR with 9.95-11.3Gb/s
link length up to 80km
10GBASE-ER, and 2G/4G/ 8G/10G Fiber Channel applications.
Low power consumption
Operating case temperature: 0 to 70 °C
Applications
10G ZR Ethernet
10G Fiber Channel
Ordering Information
Part Number
Output Power
Rec. Sens
Data Rate
Wavelength
Distance
FH-SP551TCDL80
0 ~ 4 db
-24db
10G
1550nm
80KM
www.fanghangtech.com
FANG HANG TECH LIMITED
FH-SP551TCDL80
10G SFP+ 1550nm 80km LC DDMI
2nd
General
FH-SP551TCDL80 transceiver is designed to transmit and receive optical data over single mode optical fiber for link
length 80km. The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the
receiver section consists of a APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements.
Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time
access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power,
received optical power and transceiver supply voltage.
Absolute Maximum Ratings
Parameter
Symbol
Min.
Max.
Unit
Note
Supply Voltage
Vcc
-0.5
4.0
V
Storage Temperature
-40
85
°C
Relative Humidity
85
%
Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the module
General Operating Characteristics
Parameter
Symbol
Min.
Typ
Max.
Unit
Note
Data Rate
Ethernet
10.3125
Gb/s
Fiber Channel
Supply Voltage
Vcc
3.13
3.3
3.47
V
Vcc
V
Supply Current
Icc5
mA
Icc3
450
mA
Operating Case Temp.
Tc
0
70
°C
www.fanghangtech.com
FANG HANG TECH LIMITED
FH-SP551TCDL80
10G SFP+ 1550nm 80km LC DDMI
3rd
Electrical Input/Output Characteristics
Parameter
Symbol
Min.
Typical
Max.
Unit
Notes
Transmitter
Diff. input voltage swing
120
820
mVpp
1
Tx Disable input
H
VIH
2.0
Vcc+0.3
V
L
VIL
0
0.8
Tx Fault output
H
VOH
2.0
Vcc+0.3
V
2
L
VOL
0
0.8
Input Diff. Impedance
Zin
100
Ω
Receiver
Diff. output voltage swing
340
650
800
mVpp
3
Rx LOS Output
H
VOH
2.0
Vcc+0.3
V
2
L
VOL
0
0.8
Note 1) TD+/- are internally AC coupled with 100Ω differential termination inside the module.
Note 2) Tx Fault and Rx LOS are open collector outputs, which should be pulled up with 4.7k to 10kΩ resistors on the host board. Pull up
voltage between 2.0V and Vcc+0.3V.
Note 3) RD+/- outputs are internally AC coupled, and should be terminated with 100Ω (differential) at the user SERDES.
www.fanghangtech.com
FANG HANG TECH LIMITED
FH-SP551TCDL80
10G SFP+ 1550nm 80km LC DDMI
4th
Optical Characteristics
Note 1) Measured at 10.3125b/s with PRBS 231 – 1 NRZ test pattern.
Note 2) 20%~80%
Note 3) Under the ER worst case, measured at 10.3125 Gb/s with PRBS 231 - 1 NRZ test pattern for BER < 1x10-12
Parameter
Symbol
Min.
Typ
Max.
Unit
Note
Transmitter
Operating Wavelength
1530
1565
nm
Ave. output power (Enabled)
Po
0
4
dBm
1
Extinction Ratio
ER
10
dB
1
RMS spectral width
Δλ
1
nm
Rise/Fall time (20%~80%)
Tr/Tf
50
ps
2
SMSR
>30
dB
Tx jitter(4m-80MHz)
0.1
uipp
Tx jitter(20k-80MHz)
0.3
uipp
Optical modulation amplitude
OMA
-6.2
dBm
Dispersion penalty
1
dB
Output Optical Eye
Compliant with IEEE 0802.3ae
Receiver
Operating Wavelength
1260
1600
nm
Sensitivity
Psen
-24
dBm
3
Min. overload
Pimax
-7
dBm
LOS Assert
Pa
-32
dBm
LOS De-assert
Pd
-26
dBm
LOS Hysteresis
Pd-Pa
0.5
4
dB
www.fanghangtech.com
FANG HANG TECH LIMITED
FH-SP551TCDL80
10G SFP+ 1550nm 80km LC DDMI
5th
Pin Definitions And Functions
Pin
Symbol
Name/Description
1
VEET [1]
Transmitter Ground
2
Tx_FAULT [2]
Transmitter Fault
3
Tx_DIS [3]
Transmitter Disable. Laser output disabled on high or open
4
SDA [2]
2-wire Serial Interface Data Line
5
SCL [2]
2-wire Serial Interface Clock Line
6
MOD_ABS [4]
Module Absent. Grounded within the module
7
RS0 [5]
Rate Select 0
8
RX_LOS [2]
Loss of Signal indication. Logic 0 indicates normal operation
9
RS1 [5]
Rate Select 1
10
VEER [1]
Receiver Ground
11
VEER [1]
Receiver Ground
12
RD-
Receiver Inverted DATA out. AC Coupled
13
RD+
Receiver DATA out. AC Coupled
14
VEER [1]
Receiver Ground
www.fanghangtech.com
FANG HANG TECH LIMITED
FH-SP551TCDL80
10G SFP+ 1550nm 80km LC DDMI
6th
15
VCCR
Receiver Power Supply
16
VCCT
Transmitter Power Supply
17
VEET [1]
Transmitter Ground
18
TD+
Transmitter DATA in. AC Coupled
19
TD-
Transmitter Inverted DATA in. AC Coupled
20
VEET [1]
Transmitter Ground
Notes: [1] Module circuit ground is isolated from module chassis ground within the module.
[2].should be pulled up with 4.7k – 10k ohms on host board to a voltage between 3.15Vand 3.6V.
[3]Tx_Disable is an input contact with a 4.7 kΩ to 10 kΩ pullup to VccT inside the module.
[4]Mod_ABS is connected to VeeT or VeeR in the SFP+ module. The host may pull this contact up to Vcc_Host with a resistor in the range 4.7 kΩ
to10 kΩ.Mod_ABS is asserted “High” when the SFP+ module is physically absent from a host slot.
[5] RS0 and RS1 are module inputs and are pulled low to VeeT with > 30 kΩ resistors in the module.
Typical Interface Circuit
www.fanghangtech.com
FANG HANG TECH LIMITED
FH-SP551TCDL80
10G SFP+ 1550nm 80km LC DDMI
7th
Recommended power supply filter
Note: Inductors with DC resistance of less than 1Ω should be used in order to maintain the required voltage at the SFP input pin
with 3.3V supply voltage. When the recommended supply filtering network is used, hot plugging of the SFP transceiver module
will result in an inrush current of no more than 30 mA greater than the steady state value
Functional Diagram
www.fanghangtech.com
FANG HANG TECH LIMITED
FH-SP551TCDL80
10G SFP+ 1550nm 80km LC DDMI
8th
Package Dimensions
