Краткое техническое описание (Datasheet)
www.fanghangtech.com

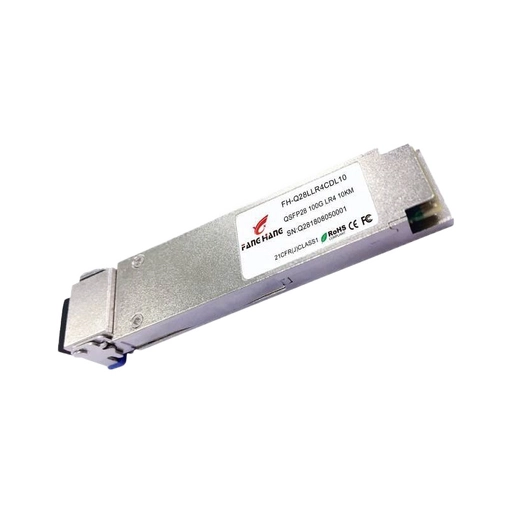

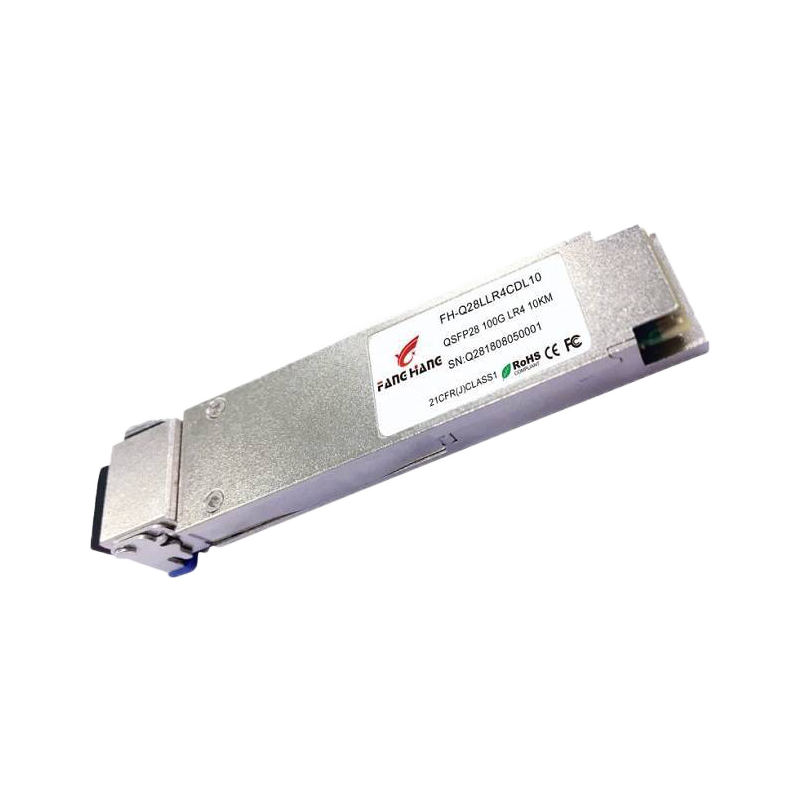

FH-Q28LLR4CDL10
100G QSFP28 LWDM LR4 10KM DDMI
1st
Product Features
Duplex LC receptacle optical interface
Single +3.3V power supply
Hot-pluggable QSFP28 MSA form factor
4x25G Electrical Serial Interface
Compliant with 4x28G(CEI-28G-VSR)
AC coupling of CML signals
Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)
Receiver: 4x25Gb/s PIN ROSA
Low power dissipation(Max:6W)
Built in digital diagnostic function
Operating case temperature range:0℃to 70℃
Compliant with 100GBASE-LR4
I2C Communication Interface
Applications
100GBASE-LR4
Infiniband QDR and DDR interconnects
100G Datacom connections
Compliant with IEEE 802.3ba
Compliant with QSFP28 MSA hardware specifications
Compliant with RoHS
www.fanghangtech.com
FH-Q28LLR4CDL10
100G QSFP28 LWDM LR4 10KM DDMI
2nd
Ordering Information
General
FH-Q28LLR4CDL10 100G QSFP28 LR4 optical transceiver integrates the transmit and receive path onto one module.
On the transmit side, four lanes of serial data streams are recovered, retimed,and passed on to four laser drivers, which
control four electric-absorption modulated lasers (EMLs) with 1296, 1300, 1305, and 1309 nm center wavelengths. The
optical signals are then multiplexed into a single-mode fiber through an industry-standard LC connector.On the receive
side, four lanes of optical data streams are optically demultiplexed by an integrated optical demultiplexer. Each data steam
is recovered by a PIN photodetector and transimpedance amplifier, retimed, and passed on to an output driver. This
module features a hot-pluggable electrical interface, low power consumption, and 2-wire serial interface.
Absolute Maximum Ratings
Part Number
Output Power
Rec. Sens
Data Rate
Wavelength
Distance
FH-Q28LLR4CDL10
-4.5~+4.5db
-10.6db
100G
1295.56/1300.05/1
304.58/1309.14nm
10KM
Parameter
Symbol
Min
Max
Unit
Note
Storage Temperature
TS
-40
85
°C
Relative Humidity
RH
0
85
%
Supply Voltage
Vcc
-0.5
3.6
V
www.fanghangtech.com
FH-Q28LLR4CDL10
100G QSFP28 LWDM LR4 10KM DDMI
3rd
Recommended Operating Conditions
Electrical Characteristics
(Top=0~70℃, Vcc=3.14~3.47V)(Tested under recommended operating conditions,unless otherwise noted)
Parameter
Symbol
Min
Typ
Max
Unit
Notes
Transmitter
Signaling rate per lane
DRPL
25.78125 ± 100 ppm
Gb/s
Differential input return loss (min)
RLd(f)
9.5 – 0.37f, 0.01≤f<8
4.75 – 7.4log10(f/14), 8 ≤f<19
dB
Differential to common mode input
return loss (min)
RLdc(f)
22-20(f/25.78), 0.01≤f<12.89
15-6(f/25.78), 12.89≤f<19
dB
Differential termination mismatch
Tm
10
%
Eye width
Ew
0.46
UI
Applied pk-pk sinusoidal jitter
Ppj
Per IEEE 802.3bm
Eye height
Eh
95
mV
DC common mode voltage
DCv
-350
2850
mV
Receiver
Signaling rate per lane
DRPL
25.78125 ± 100 ppm
Gb/s
Differential data output swing
Vout,pp
400
800
mV
Eye width
Ew
0.57
UI
Vertical eye closure
5.5
dB
Differential output return loss (min)
RLd(f)
9.5 – 0.37f, 0.01≤f<8
4.75 – 7.4log10(f/14), 8 ≤f<19
dB
Common to differential mode
conver- sion return loss (min)
RLdc(f)
22-20(f/25.78), 0.01≤f<12.89
15-6(f/25.78), 12.89≤f<19
dB
Differential termination mismatch
Tm
10
%
Transition time, 20% to 80%
Tr,Tf
12
ps
Parameter
Symbol
Min
Typ
Max
Unit
Note.
Data Rate
DR
103.1
Gb/s
Power Supply Voltage
Vcc
3.13
3.30
3.47
V
Power Supply Current
Icc
-
-
1.8
A
Case Operating Temperature
Tc
-5
-
+70
°C
www.fanghangtech.com
FH-Q28LLR4CDL10
100G QSFP28 LWDM LR4 10KM DDMI
4th
Optical Characteristics
(Tested under recommended operating conditions,unless otherwise noted)
Parameter
Symbol
Unit
Min
Typ
Max
Notes
Transmitter
Signaling rate, each lane
Gb/s
25.78125 ±100 ppm
1
Four Lane Wavelength Range
λ1
nm
1294.53
1295.56
1296.59
λ2
1299.02
1300.05
1301.09
λ3
1303.54
1304.58
1305.63
λ4
1308.09
1309.14
1310.19
Total launch power
Pout
dBm
10.5
Average launch power, each lane
Pavg
dBm
-4.5
4.5
2,7
Optical modulation amplitude, each
lane (OMA)
OMA
dBm
-1.3
4.5
Extinction ratio
ER
dB
4
Side-mode suppression ratio
SMSR
dB
30
Average launch power of OFF
transmitter, per lane
POFF
dBm
-30
Optical return loss tolerance
dB
20
Transmitter reflectance
dB
–12
Transmitter eye mask { X1, X2, X3,
Y1, Y2, Y3 }
{ 0.25, 0.4, 0.45, 0.25, 0.28, 0.4 }
3
Receiver
Receive Rate for Each Lane
Gb/s
25.78125 ±100 ppm
4
Four Lane Wavelength Range
λ1
nm
1294.53
1295.56
1296.59
λ2
1299.02
1300.05
1301.09
λ3
1303.54
1304.58
1305.63
λ4
1308.09
1309.14
1310.19
Overload Input Optical Power
Pmax
dBm
5.5
Average Receive Power for Each
Lane
Pin
dBm
-10.6
4.5
5,7
Receiver Sensitivity(OMA)per lane
Psens1
dBm
-10.6
Stressed Sensitivity(OMA) per lane
Psens2
dBm
-6.8
6
Return Loss
RL
dB
-26
Receiver Electrical 3dB upper
cutoff frequency, per lane
GHz
31
Los De-Assert
Pd
dBm
-11.6
Los Assert
Pa
dBm
-23.6
Loss Hysteresis
Pd-Pa
dBm
2
www.fanghangtech.com
FH-Q28LLR4CDL10
100G QSFP28 LWDM LR4 10KM DDMI
5th
Notes:
1. Transmitter consists of 4 lasers operating at 25.78Gb/s each.
2. Minimum value is informative.
3. Hit ratio 5x10-5.
4. Receiver consists of 4 photodetectors operating at 25.78Gb/s each.
5. Minimum value is informative, equals min TxOMA with infinite ER and max channel insertion loss.
6. SRS is measured with vertical eye closure penalty of 1.8 dB max, J2 of 0.30 UI, and J9 of 0.47 UI.
7. Power value and power accuracy are with all channels on..
Pin Definitions And Functions
Pin
Name
Logic
Description
Note.
1
GND
Ground
1
2
Tx2n
CML-I
Transmitter Inverted Data Input
10
3
Tx2p
CML-I
Transmitter Non-Inverted Data Input
10
4
GND
Ground
1
5
Tx4n
CML-I
Transmitter Inverted Data Input
10
6
Tx4p
CML-I
Transmitter Non-Inverted Data Input
10
7
GND
Ground
1
8
ModSelL
LVTTL-I
Module Select
3
9
ResetL
LVTTL-I
Module Reset
4
10
Vcc Rx
+3.3V Power Supply Receiver
2
11
SCL
LVCMOS
-I/O
2-wire serial interface clock
5
12
SDA
LVCMOS
-I/O
2-wire serial interface data
5
13
GND
Ground
1
14
Rx3p
CML-O
Receiver Non-Inverted Data Output
9
www.fanghangtech.com
FH-Q28LLR4CDL10
100G QSFP28 LWDM LR4 10KM DDMI
6th
15
Rx3n
CML-O
Receiver Inverted Data Output
9
16
GND
Ground
1
17
Rx1p
CML-O
Receiver Non-Inverted Data Output
9
18
Rx1n
CML-O
Receiver Inverted Data Output
9
19
GND
Ground
1
20
GND
Ground
1
21
Rx2p
CML-O
Receiver Non-Inverted Data Output
9
22
Rx2n
CML-O
Receiver Inverted Data Output
9
23
GND
Ground
1
24
Rx4p
CML-O
Receiver Non-Inverted Data Output
9
25
Rx4n
CML-O
Receiver Inverted Data Output
9
26
GND
Ground
1
27
ModPrsL
LVTTL-O
Module Present
6
28
IntL
LVTTL-O
Interrupt
7
29
Vcc Tx
+3.3V Power supply transmitter
2
30
Vcc1
+3.3V Power supply
2
31
LPMode
LVTTL-I
Low Power Mode
8
32
GND
Ground
1
33
Tx3p
CML-I
Transmitter Non-Inverted Data Input
10
34
Tx3n
CML-I
Transmitter Inverted Data Input
10
35
GND
Ground
1
36
Tx1p
CML-I
Transmitter Non-Inverted Data
37
Tx1n
CML-I
Transmitter Inverted Data Input
10
38
GND
Ground
1
Notes:
1: GND is the symbol for signal and supply (power) common for the module. All are common within the module and all module voltages are
referenced to this potential unless otherwise noted. Connect these directly to the host board signal-common ground plane.
2: Vcc Rx, Vcc1 and Vcc Tx shall be applied concurrently. Vcc Rx Vcc1 and Vcc Tx may be internally connected within the module in any
combination. The connector pins are each rated for a maximum current of 1000 mA. Recommended host board power supply filtering is shown
below .
3: The ModSelL is an input pin. When held low by the host, the module responds to 2-wire serial communication commands. The ModSelL allows
the use of multiple modules on a single 2-wire interface bus. When the ModSelL is "High", the module shall not respond to or acknowledge any
2-wire interface communication from the host. ModSelL signal input node shall be biased to the "High" state in the module. In order to avoid
conflicts, the host system shall not attempt 2-wire interface communications within the ModSelL de-assert time after any modules are deselected.
Similarly, the host shall wait at least for the period of the ModSelL assert time before communicating with the newly selected module. The assertion
and de-asserting periods of different modules may overlap as long as the above timing requirements are met.
4: The ResetL pin shall be pulled to Vcc in the module. A low level on the ResetL pin for longer than the minimum pulse length (t_Reset_init)
initiates a complete module reset, returning all user module settings to their default state. Module Reset Assert Time (t_init) starts on the rising edge
after the low level on the ResetL pin is released. During the execution of a reset (t_init) the host shall disregard all status bits until the module
indicates a completion of the reset interrupt. The module indicates this by asserting "low" an IntL signal with the Data_Not_Ready bit negated. Note
that on power up (including hot insertion) the module should post this completion of reset interrupt without requiring a reset.
www.fanghangtech.com
FH-Q28LLR4CDL10
100G QSFP28 LWDM LR4 10KM DDMI
7th
5: Low speed signaling other than SCL and SDA is based on Low Voltage TTL (LVTTL) operating at Vcc. Vcc refers to the generic supply voltages
of VccTx, VccRx, Vcc_host or Vcc1.
Hosts shall use a pull-up resistor connected to Vcc_host on each of the 2-wire interface SCL (clock), SDA (data), and all low speed status outputs.
The SCL and SDA is a hot plug interface that may support a bus topology.
6: ModPrsL is pulled up to Vcc_Host on the host board and grounded in the module. The ModPrsL is asserted "Low" when inserted and deasserted
"High" when the module is physically absent from the host connector.
7: IntL is an output pin. When IntL is "Low", it indicates a possible module operational fault or a status critical to the host system. The host identifies
the source of the interrupt using the 2-wire serial interface. The IntL pin is an open collector output and shall be pulled to host supply voltage on the
host board. The INTL pin is deasserted "High" after completion of reset, when byte 2 bit 0 (Data Not Ready) is read with a value of '0' and the flag
field is read (see SFF-8636).
8: The LPMode pin shall be pulled up to Vcc in the module. The pin is a hardware control
used to put modules into a low power mode when high. By using the LPMode pin and a combination of the Power_override, Power_set and
High_Power_Class_Enable software control bits (Address A0h, byte 93 bits 0,1,2), the host controls how much power a module can dissipate.
9: Rx(n)(p/n) are module receiver data outputs. Rx(n)(p/n) are AC-coupled 100 Ohm differential lines that should be terminated with 100 Ohm
differentially at the Host ASIC(SerDes). The AC coupling is inside the module and not required on the Host board. For operation at 28 Gb/s the
relevant standards (e.g., OIF CEI v3.1) define the signal requirements on the high-speed differential lines. For operation at lower rates, refer to the
relevant standards.
Note: Due to the possibility of insertion of legacy QSFP and QSFP+ modules into a host
designed for higher speed operation, it is recommended that the damage threshold of the host input be at least 1600 mV peak to peak differential.
Output squelch for loss of optical input signal, hereafter Rx Squelch, is required and shall function as follows. In the event of the optical signal on
any channel becoming equal to or less than the level required to assert LOS, then the receiver data output for that channel shall be squelched or
disabled. In the squelched or disabled state output impedance levels are maintained while the differential voltage swing shall be less than 50 mVpp.
In normal operation the default case has Rx Squelch active. Rx Squelch can be deactivated using Rx Squelch Disable through the 2-wire serial
interface. Rx Squelch Disable is an optional function. For specific details refer to SFF-8636.
10: Tx(n)(p/n) are module transmitter data inputs. They are AC-coupled 100 Ohm differential lines with 100 Ohm differential terminations inside the
module. The AC coupling is inside the module and not required on the Host board. For operation at 28 Gb/s the relevant standards (e.g., OIF CEI
v3.1) define the signal requirements on the high-speed differential lines. For operation at lower rates, refer to the relevant standards. Due to the
possibility of insertion of modules into a host designed for lower speed operation, the damage threshold of the module input shall be at least 1600 mV
peak to peak differential. Output squelch, hereafter Tx Squelch, for loss of input signal, hereafter Tx LOS, is an optional function. Where
implemented it shall function as follows. In the event of the differential, peak-to-peak electrical signal on any channel becomes less than 50 mVpp,
then the transmitter optical output for that channel shall be squelched or disabled and the associated TxLOS flag set. Where squelched, the transmitter
OMA shall be less than or equal to -26 dBm and when disabled the transmitter power shall be less than or equal to -30 dBm. For applications, e.g.
Ethernet, where the transmitter off condition is defined in terms of average power, disabling the transmitter is recommended and for applications, e.g.
InfiniBand, where the transmitter off condition is defined in terms of OMA, squelching the transmitter is recommended. In module operation, where
Tx Squelch is implemented, the default case has Tx Squelch active. Tx Squelch can be deactivated using Tx Squelch Disable through the 2-wire
serial interface. Tx Squelch Disable is an optional function. For specific details refer to SFF- 8636.
